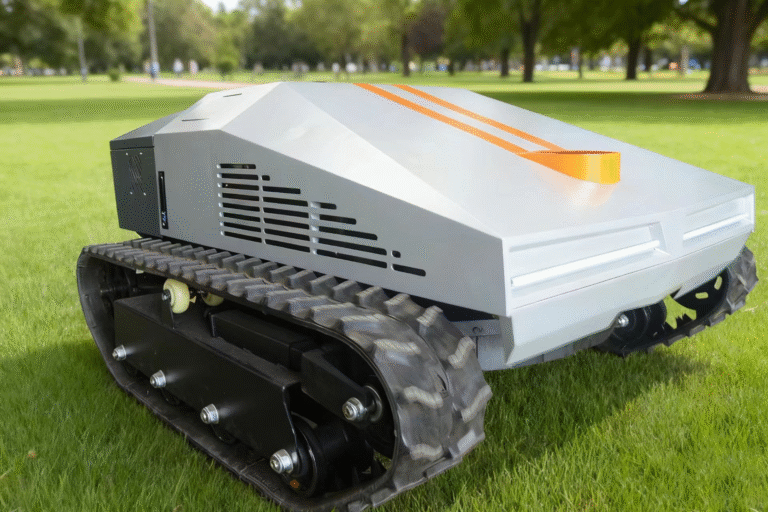

ROBOT LAWN MOWER
APPLICATION: Orchards, Gardens
ENERGY SOURCE: Pure Electric
SENSORS: RTK, Lidar
AUTONOMOS: Straight Line Cruise, Path Following, Automatic Obstacle Avoidance
Introduction
This is an intelligent electric lawn mowing equipment focusing on the automatic maintenance of large-area lawns. The equipment combines the advantages of efficient operation and intelligent control, supporting both remote control and APP control. It is also equipped with autonomous driving functions such as straight-line cruise, path following, and automatic obstacle avoidance, significantly reducing the need for manual intervention.
In terms of performance, the equipment has an operation range and height adjustment capability suitable for lawn maintenance. Combined with strong climbing performance, it can cope with complex terrain environments. The power system adopts a dual-motor configuration, matched with an appropriate voltage specification, which can stably output power and ensure the efficiency of operation and driving. With the core characteristics of high efficiency, intelligence, and strong terrain adaptability, it is an ideal equipment for large-area lawn maintenance.
PARAMETERS
| ITEM | FIGURE |
|---|---|
| DIMENSION(MM) | 1410X1200X710 |
| WEIGHT(KG) | 352 |
| EFFICIENCY(MU/H) | 3-5 |
| MOWERING HIGHT(MM) | 20-150 |
| MOWERING WIDTH(MM) | 800 |
| CLIMBING ANGLE | 60° |
| DRIVE SPEED(KM/H) | 0-5 |
| DRIVE MOTO POWER(W) | 2500X2 |
| DRIVE MOTO VOOLTAGE(V) | 48 |
| CONTROL | REMOTE+APP |
| SELF DRIVE | STRAIGHT LINE CRUISE, PATH FOLLOWING, AUTOMATIC OBSTACLE AVOIDANCE |
